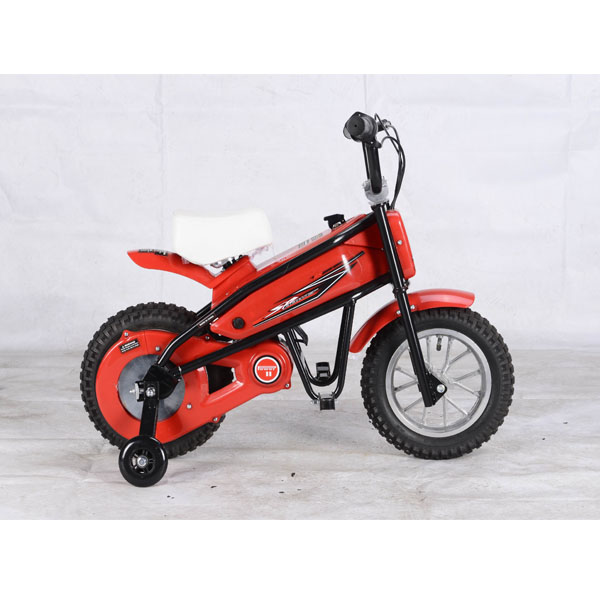

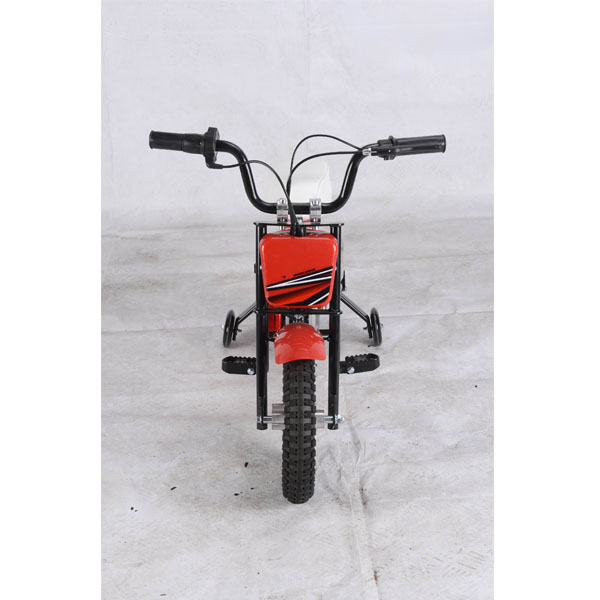

Eletric Kart

SKU :UNKNOWN SKU PLS CONTACT WEBMASTER.

Add Date : 2018-07-13  |  Print
Other Cate ：
  • Products Size—900mmX570mmX700mm
  • Motor Type —-brushed DC , 200W/24V
  • Motor Max Loaded Amps.—3.8A
  • Torque—0.89（N.m）
  • Max RPM—2700±7.5%(rpm)
  • Controller Type—–Air cooled, non water -proof; brake shutoff, charger port
  • Battery—–Lead-Acid Battery, 12V/ 5AH*2pcs
  • Charging Time—6-8 hours
  • Battery Charge —-Input-100-240VAC,50/60Hz; Output-DC24V,0.6A
  • Special Features——-Dismountable Handle bar
  • Turning angle——28º
  • Transmission Ratio—92/11
  • Seat Height——500 mm
  • Wheel base Distance—-580 mm
  • Front & Rear Tire and Rim—12½×2.75
  • Maximum Carrying Capacity—–42kgs
  • Mini Ground Clearance—–120mm
  • Low speed:7km/h; high speed:15km/h
  • Maximum Distance Range 8km
  • Control System –handle bar control
  • Throttle Type—turn control
  • Front & Rear Braking System—–Mechanical disc,left handle control
  • Drive System——Chian drive
  • Brake Distance—-≤2m(7km/h); ≤4m(15km/h)
  • Packing Size—–960mmx280mmx550mm
  • N.W/G.W.—–21kgs/24kgs
