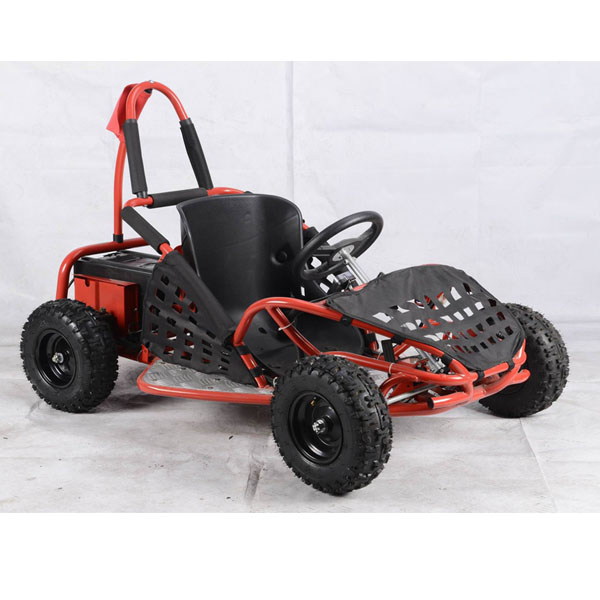

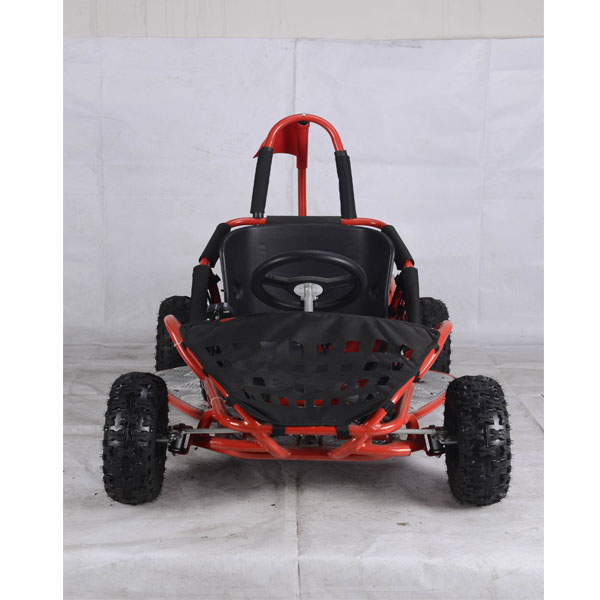

Electric Kart

SKU :UNKNOWN SKU PLS CONTACT WEBMASTER.

Add Date : 2018-07-13  |  Print
Other Cate ：
  • Type electric go-kart / baby kart / electric quad
  • Colours Available Red / Blue / Orange / Green / Black …
  • Motor Type 48V brushed DC / 1000W
  • Battery 4 Lead-Acid Batteries, 12V/12Ah
  • Charging Time 6-8 hours
  • Battery Charger input-100-240VAC, 50/60 Hz, 1.8A Max, output – DC24V,1.5A
  • Torque 1.3 N.m
  • Max RPM 2 700 ± 7.5% (rpm)
  • Transmission Ratio
  • Controller Type Air cooled, non water -proof;brake shutoff, charger port
  • Steering System wheel control
  • Throttle Type foot control
  • Front / Rear Braking System Mechanical disc, foot brake control
  • Maximum Speed 25 km/h
  • Cylinder capacity
  • Maximum Distance Range 40 km
  • Maximum Carrying Capacity 75 kg
  • Turning Angle 12°
  • Seat Height 123mm
  • Wheel Base Distance 924mm
  • Front / Rear Tire and Rim 13*5.00-6
  • Minimum Ground Clearence 123 mm
  • Brake Distance 2M
  • Special Features Battery level indicator / Stabilisers for a more controlled ride / with reverse gear / electric start
  • Product Weight 70 kg
  • Product Dimensions 1440*820*920mm
  • Package Content 1 Electric go-kart / 4 Batteries
  • Gross Weight 90 kg
  • Package Dimensions 1400*850*655mm
  • Certifications CE; EU type-approval
  • Manufacturer’s Warranty 1 year for frame
  • Package weight (g) 90KG
  • Package dimensions LL (mm) 1400
  • Package dimensions ML (mm) 850
  • Package dimensions SL (mm) 655
